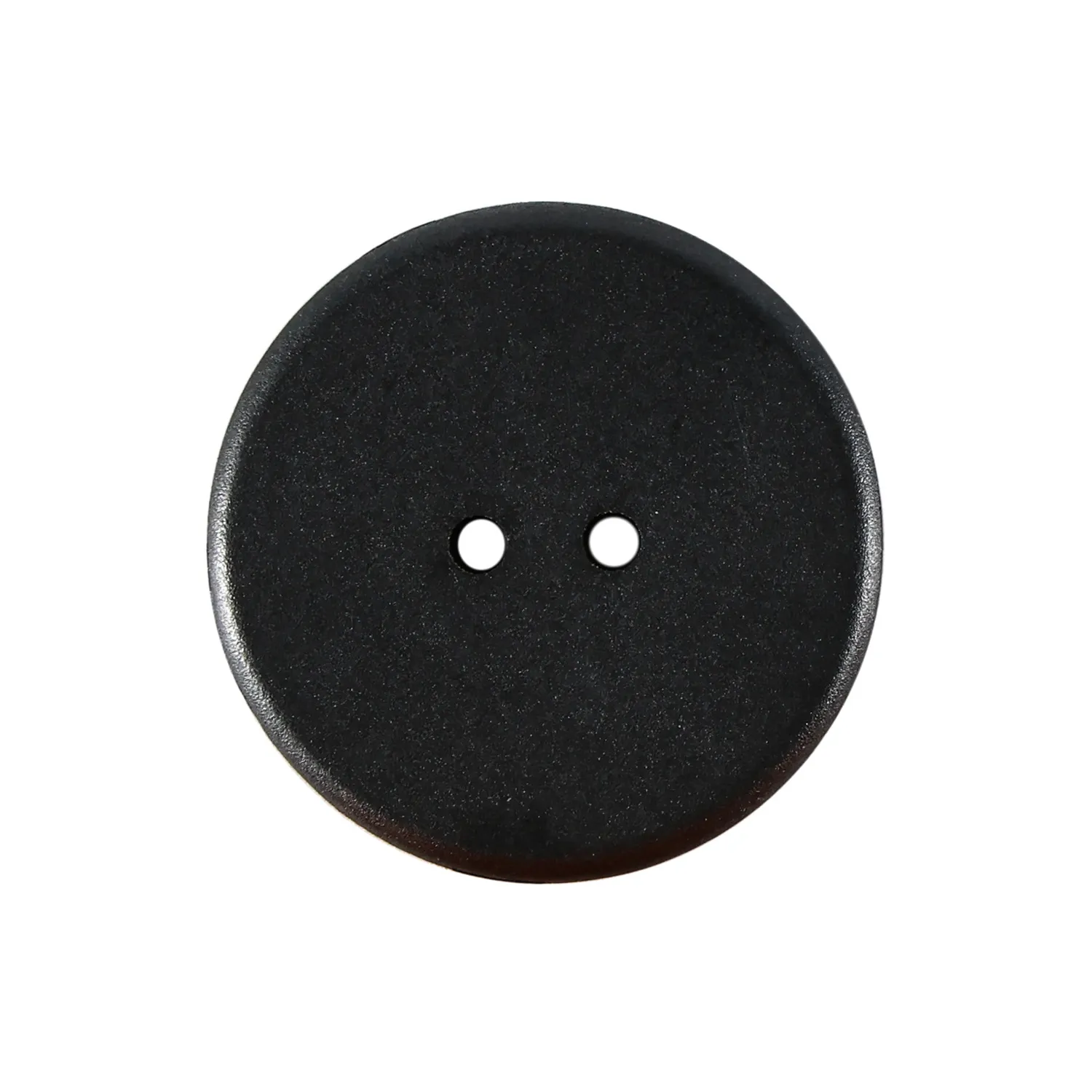

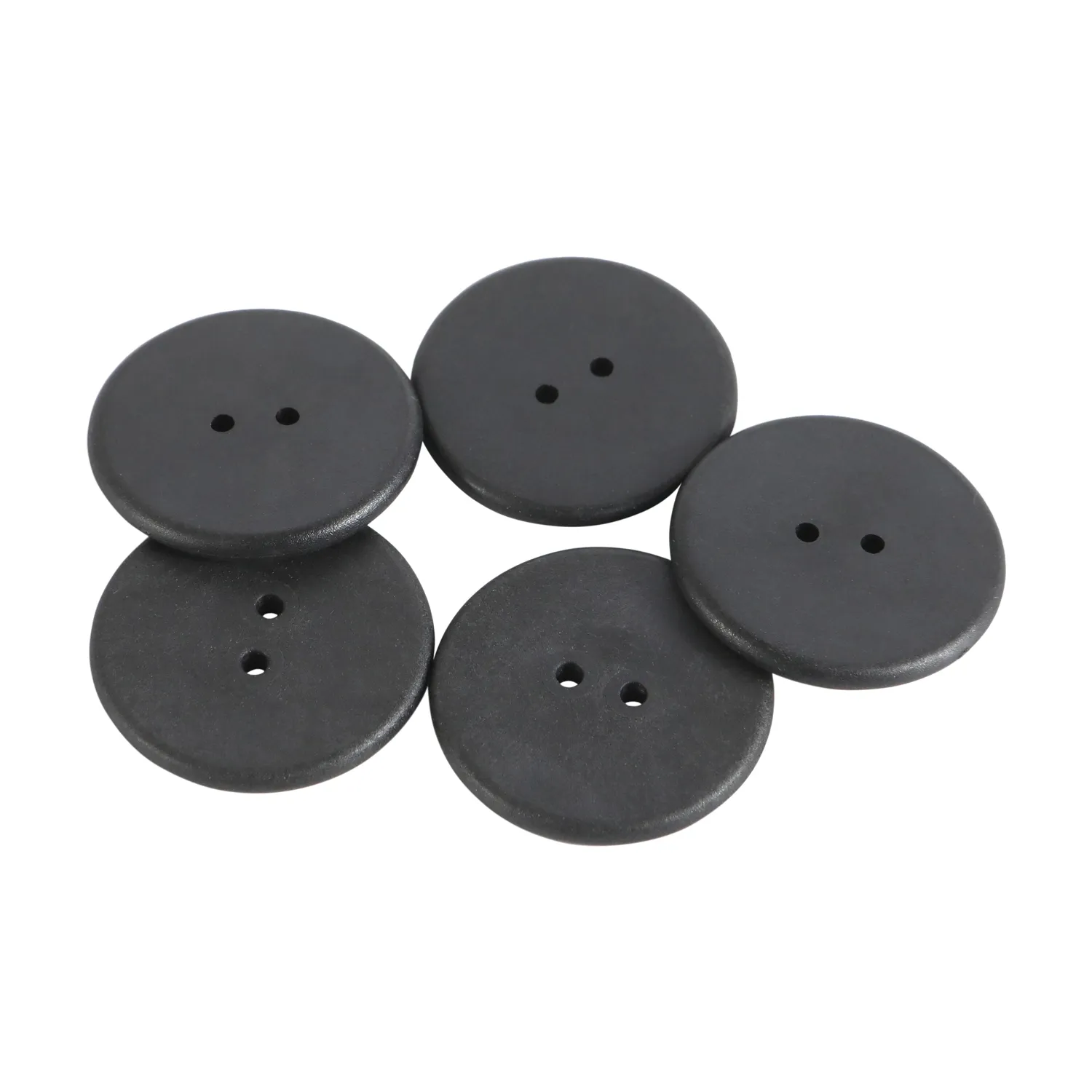

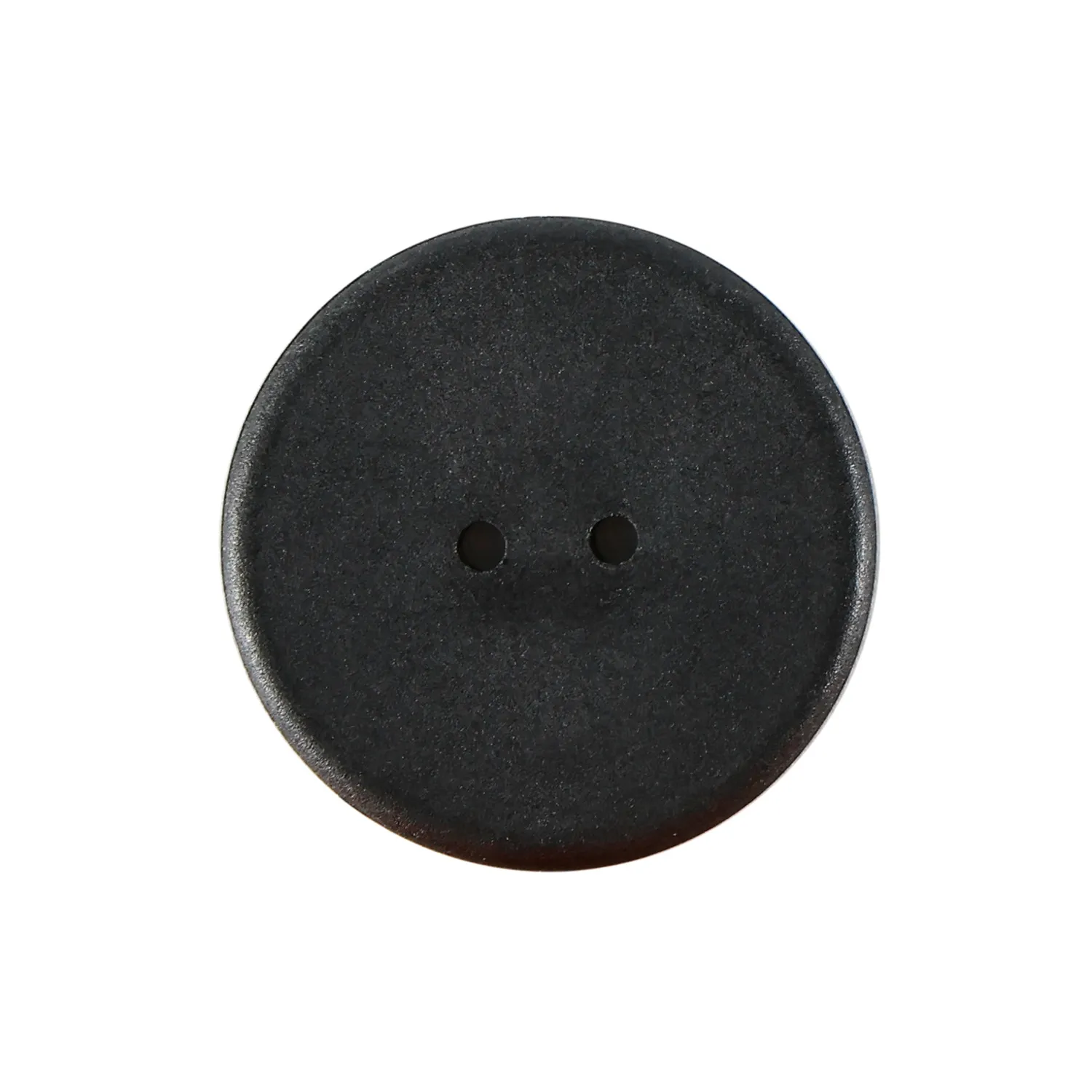

TagTrack UHF25 - Long-range button UHF RFID tag
Button-style UHF RFID tag with a read range of up to 5 m — exceptional for such a compact form. NXP UCODE 9 chip.
Specifications
| Dimensions | Ø 25 mm × 2.6 mm |
|---|---|
| Weight | 1.9 g |
| Chip type | NXP UCODE 9 |
| Protocol | EPC Class 1 Gen 2 / ISO 18000-6C |
| Operating frequency | 868–916 MHz |
| Read range | > 5 m (depending on environment and reader power) |
| Data retention | 20 years |
| Service life | 200 wash cycles or 2 years from dispatch |
| Material | PPS and high-temperature epoxy adhesive |
| Mounting | sewing-in or stitching |
| Personalisation | laser marking available |
About
TagTrack UHF25 is a durable button-style UHF RFID tag designed for identifying and tracking textiles subjected to intensive industrial laundry processes. The housing, made of durable polyphenylene sulfide (PPS) and high-temperature epoxy resin, provides high resistance to water, high temperature, pressure and the chemicals used in industrial laundries. The tag can be permanently sewn into workwear, medical garments, linen, mops, towels, napkins and other textile products.
Thanks to its special antenna design, TagTrack UHF25 offers a read range of up to 5 metres — an exceptional result for an RFID tag in such a compact button form. The NXP UCODE 9 chip enables fast, bulk reading of many tags simultaneously, supporting identification, record-keeping, stocktaking and textile management processes in industrial laundries, hotels, hospitals, schools and manufacturing plants.
Certifications
CE · RoHS
