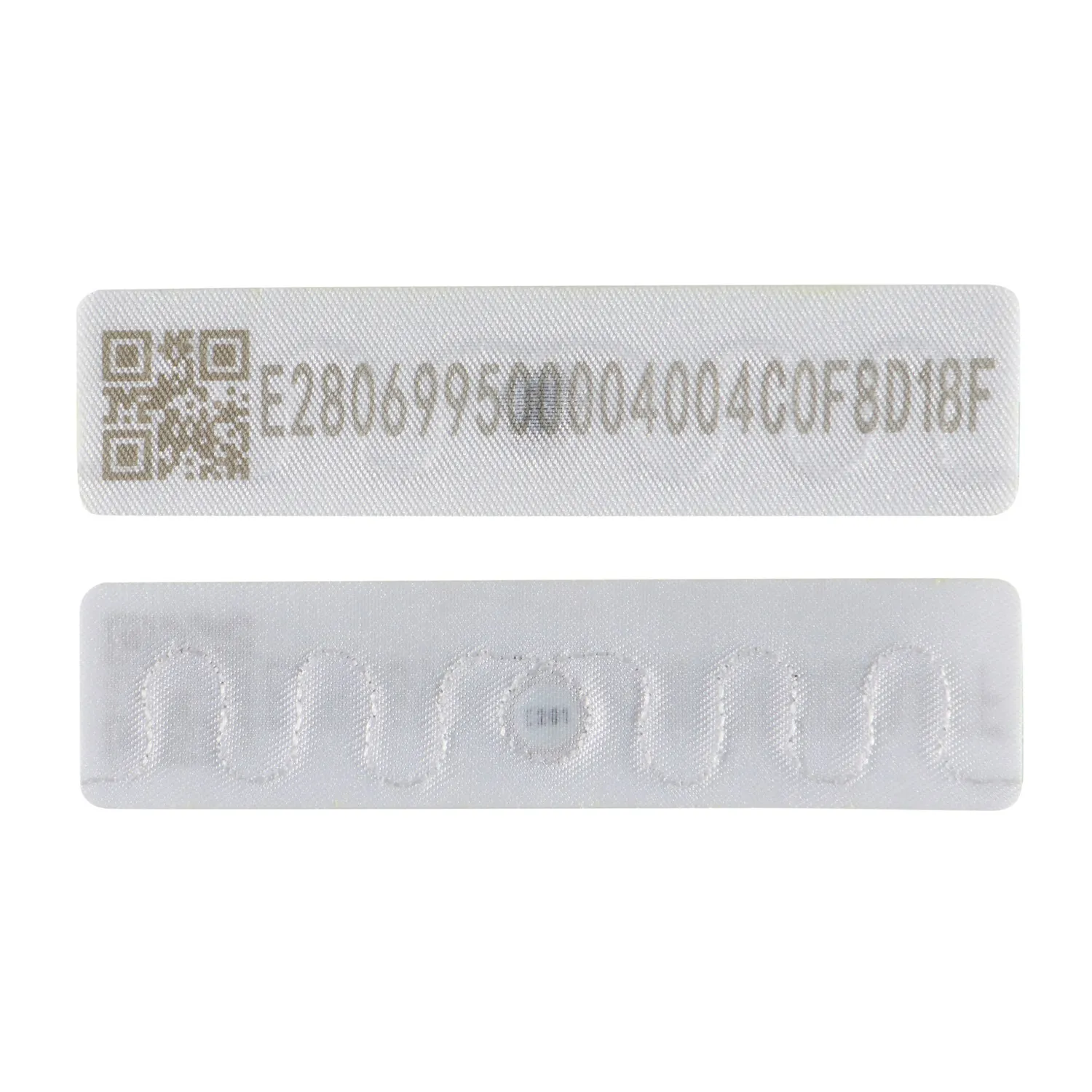

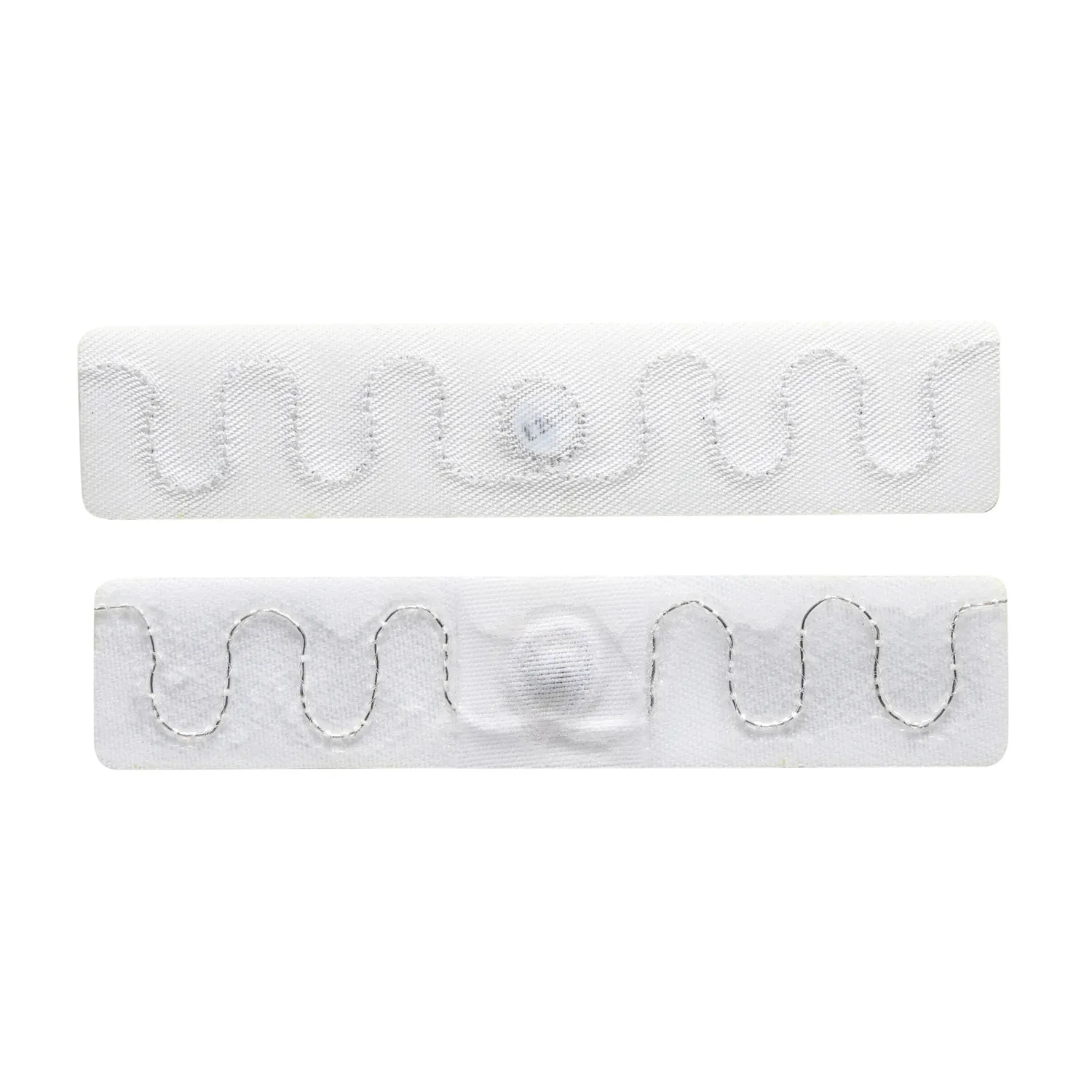

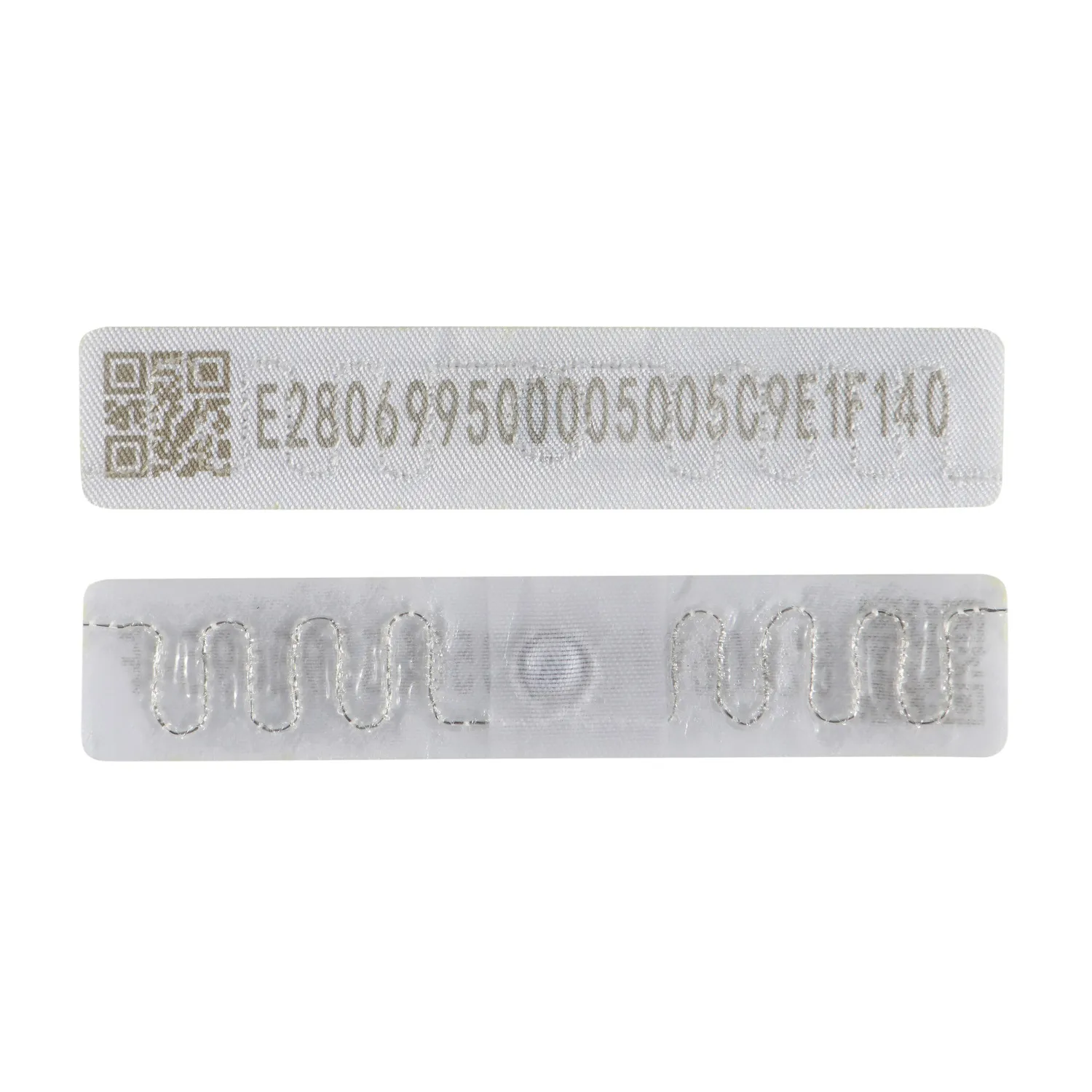

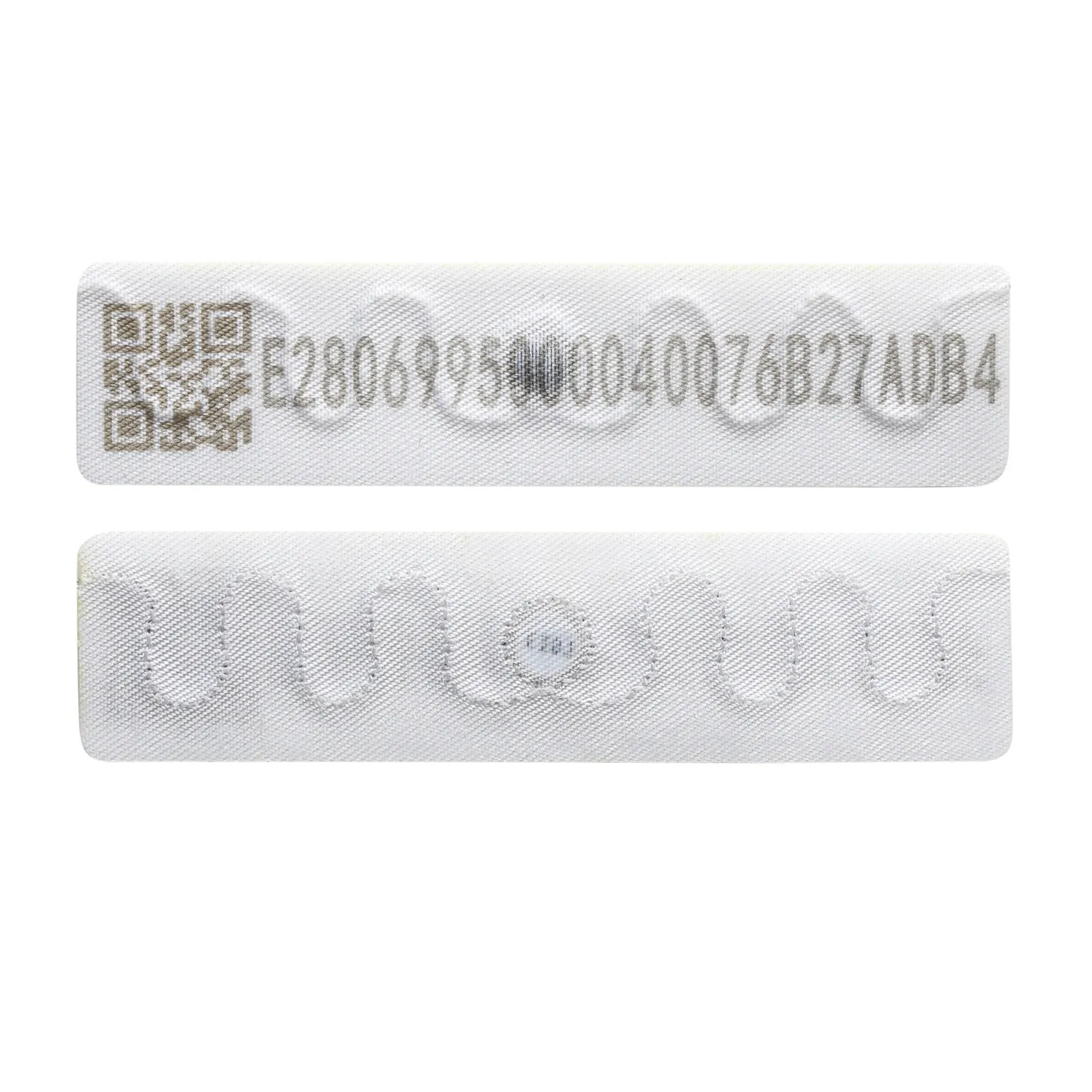

TagTrack 7015 - UHF RFID tag
Durable UHF RFID tag for industrial laundries. Withstands 250+ cycles of washing, drying and ironing.
Specifications
| Dimensions | 70 × 15 × 1.5 mm |
|---|---|
| Weight | 0.6 g |
| Service life | > 250 wash cycles |
| Memory | EPC 96 bits |
| Read range | 7 m |
| Operating frequency | 865–928 MHz |
| Typical laundry cycle | washing +90°C / drying +180°C / ironing +200°C / sterilisation +135°C (200+ cycles) |
| Mechanical resistance | up to 60 bar |
| Autoclave resistance | sterilisation +134°C, 10 minutes, 3.25 bar |
| Mounting | heat sealing (+204°C, 12 s, 0.5 kg/cm²) or sewing |
| Standard compliance | ISO/IEC 18000-6C EPC Class 1 Gen 2 |
About
TagTrack 7015 is a tag designed for textile products subjected to a variety of industrial laundry processes, including sterilisation and ironing. It uses UHF technology and complies with the international EPC Class 1 Gen 2 and ISO 18000 standards. The TagTrack 7015 laundry tag enables bulk reading from a distance of several metres.
The tag enables effective identification, tracking and management of garments and other textile products. In facilities that require a constant rotation of clean linen, uniforms, workwear, medical garments or cleaning textiles, laundry tags support automated systems in faster and more accurate monitoring of large numbers of individual items.
Certifications
OEKO-TEX® Standard 100 Class I · REACH · RoHS · EECC · MRI Conditional
