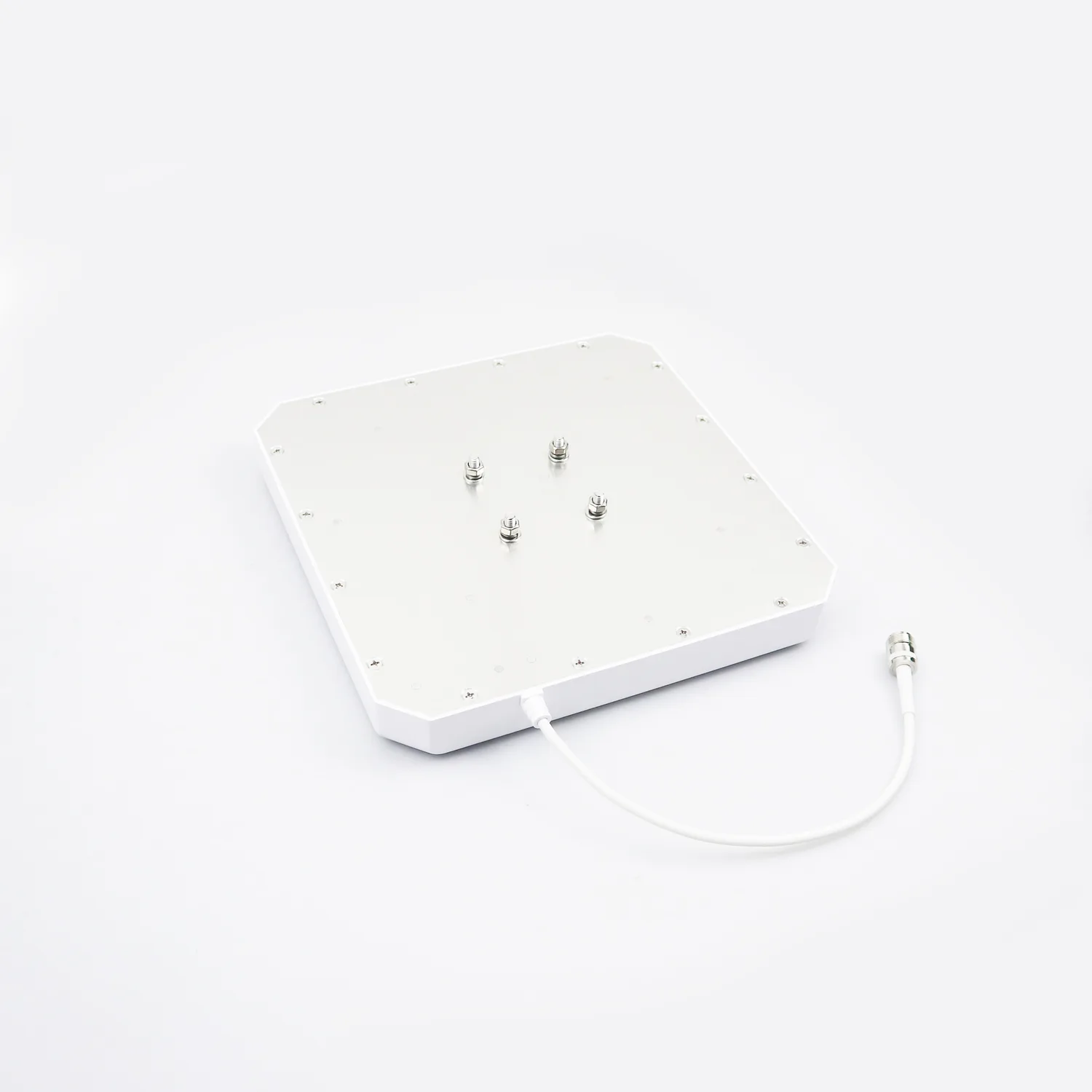

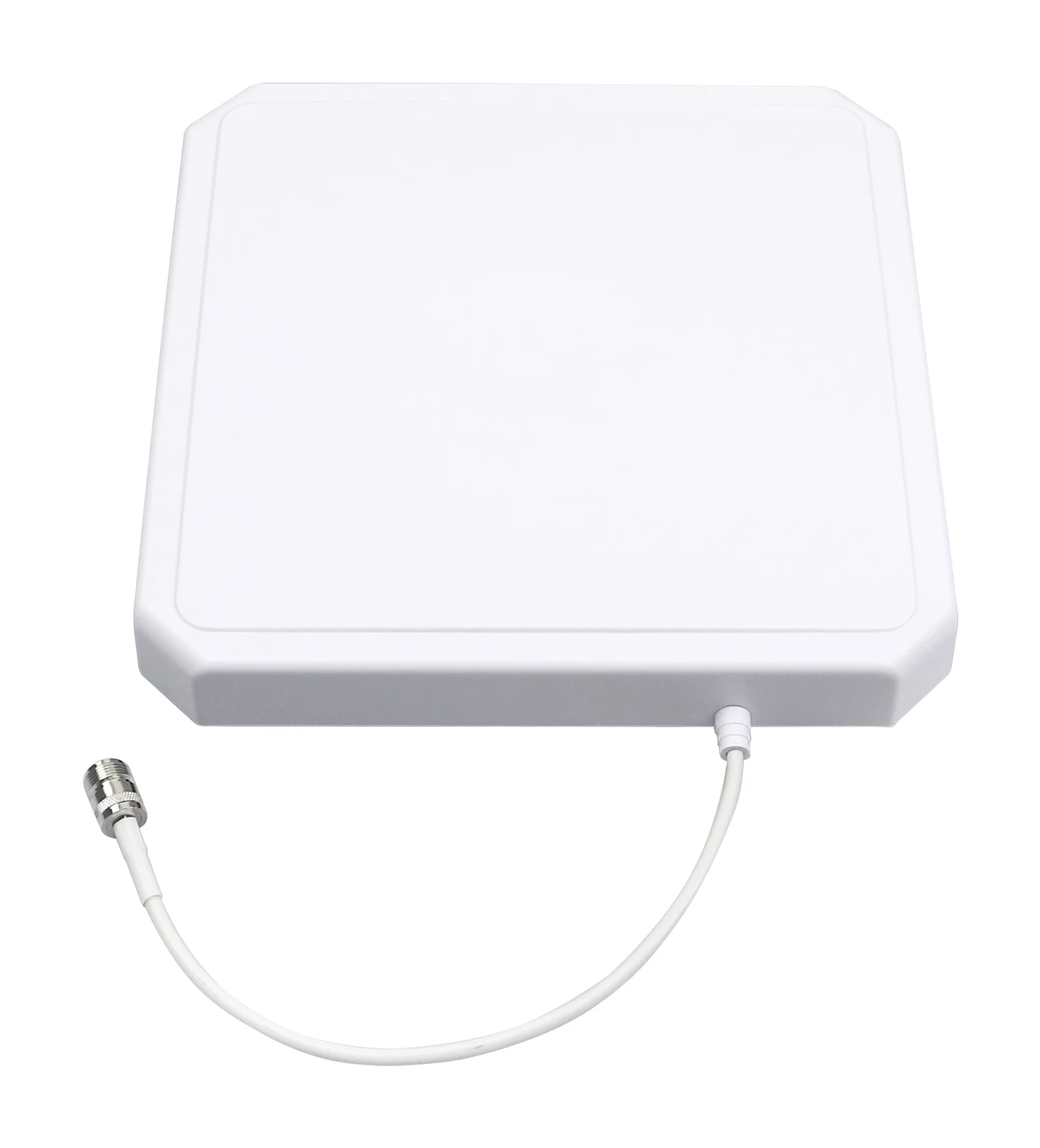

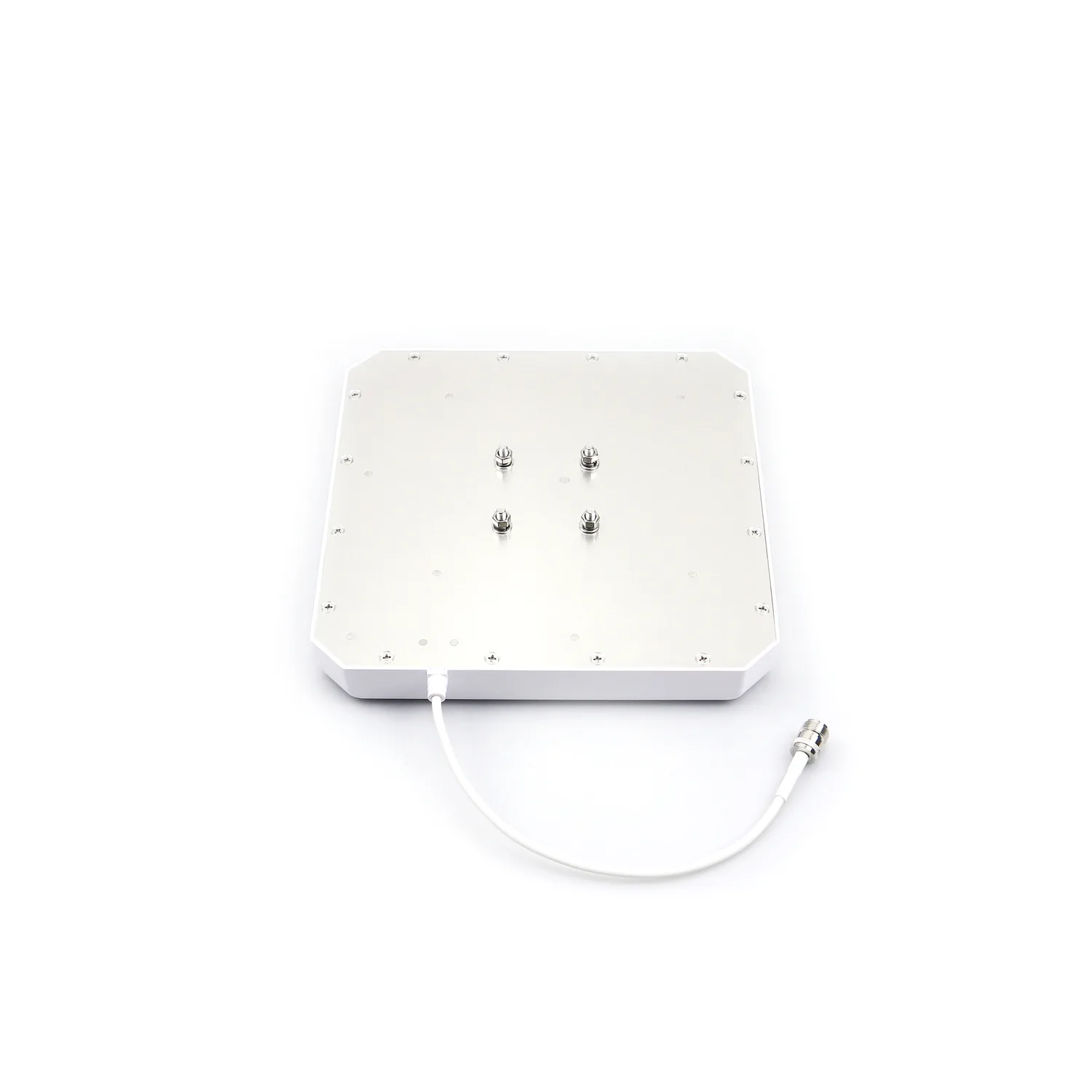

TagTrack ANT-7NB - Directional RFID antenna
UHF RFID antenna for directional tag reading. Ideal for encoding stations and quality control.
Specifications
| Operating frequency | 865–868 MHz (ETSI) |
|---|---|
| Antenna gain | 7 dBi |
| Polarisation | circular |
| Beamwidth | 50° (H) / 50° (V) |
| Impedance | 50 Ω |
| Maximum power | 10 W |
| Axial ratio | ≤ 2 dB |
| Connector | SMA / MMCX |
| Protection rating | IP65 |
| Housing material | PC + ABS |
| Dimensions | 258 × 258 × 33.5 mm |
| Operating temperature | -40°C to +60°C |
About
TagTrack ANT-7NB is a directional UHF RFID antenna with a narrow radiation pattern and 7 dBi gain, designed for applications requiring precise RFID tag identification within a defined read zone. Thanks to circular polarisation and a 50° × 50° beam, it performs excellently at reading stations, inspection points, textile tracking systems and applications where reading must be limited to a selected area.
The compact design and IP65 protection rating allow use both indoors and outdoors.
