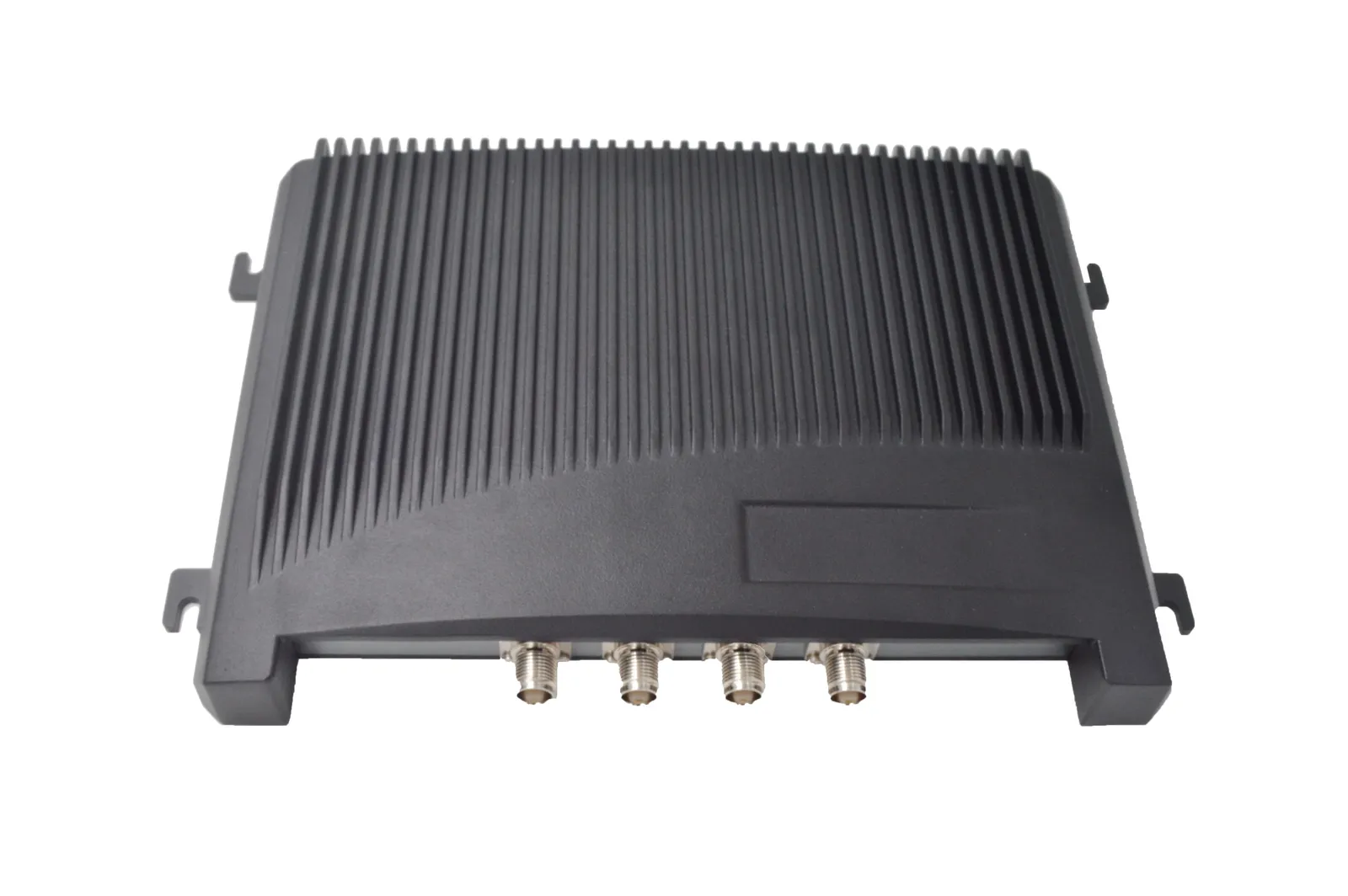

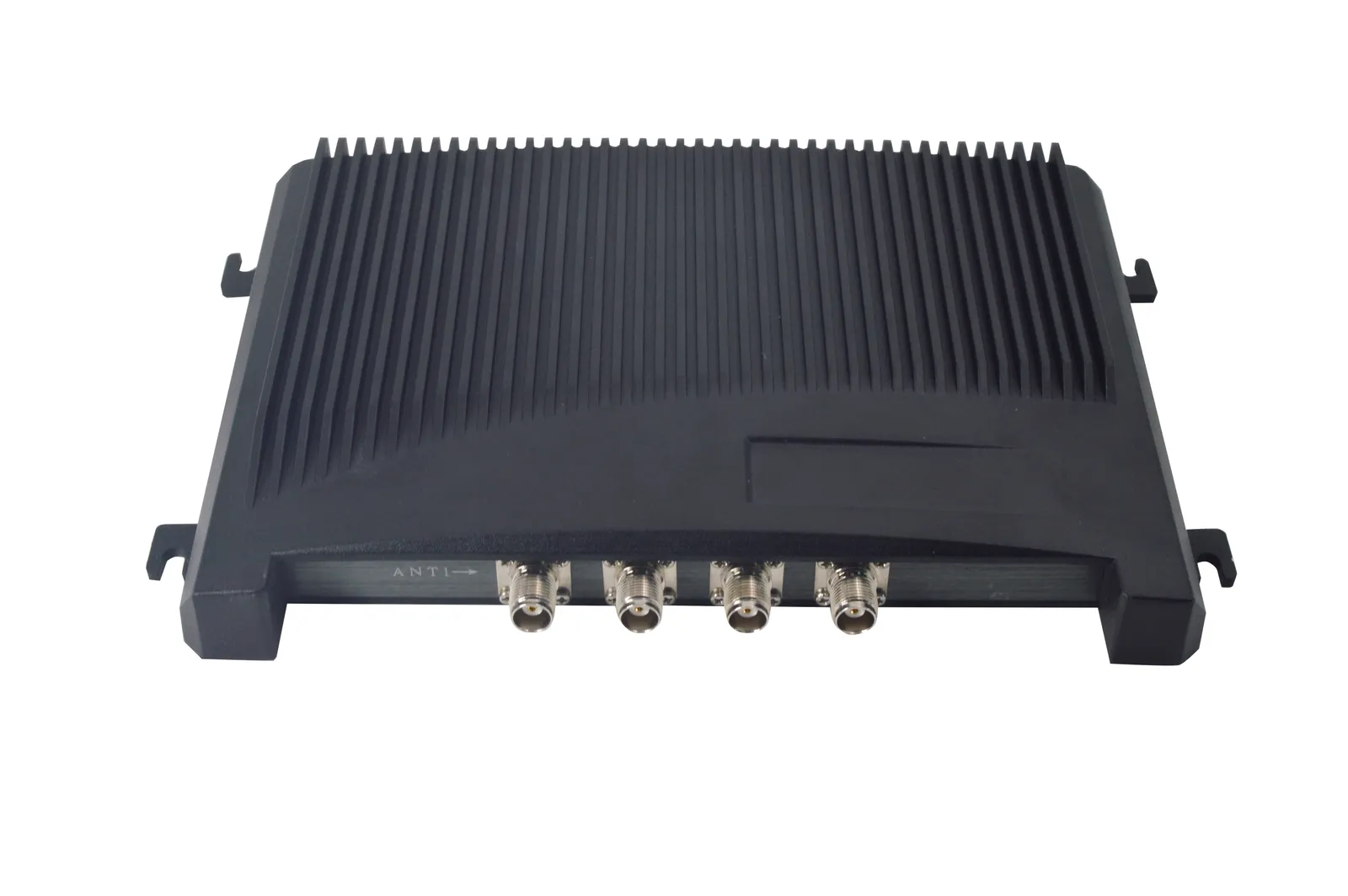

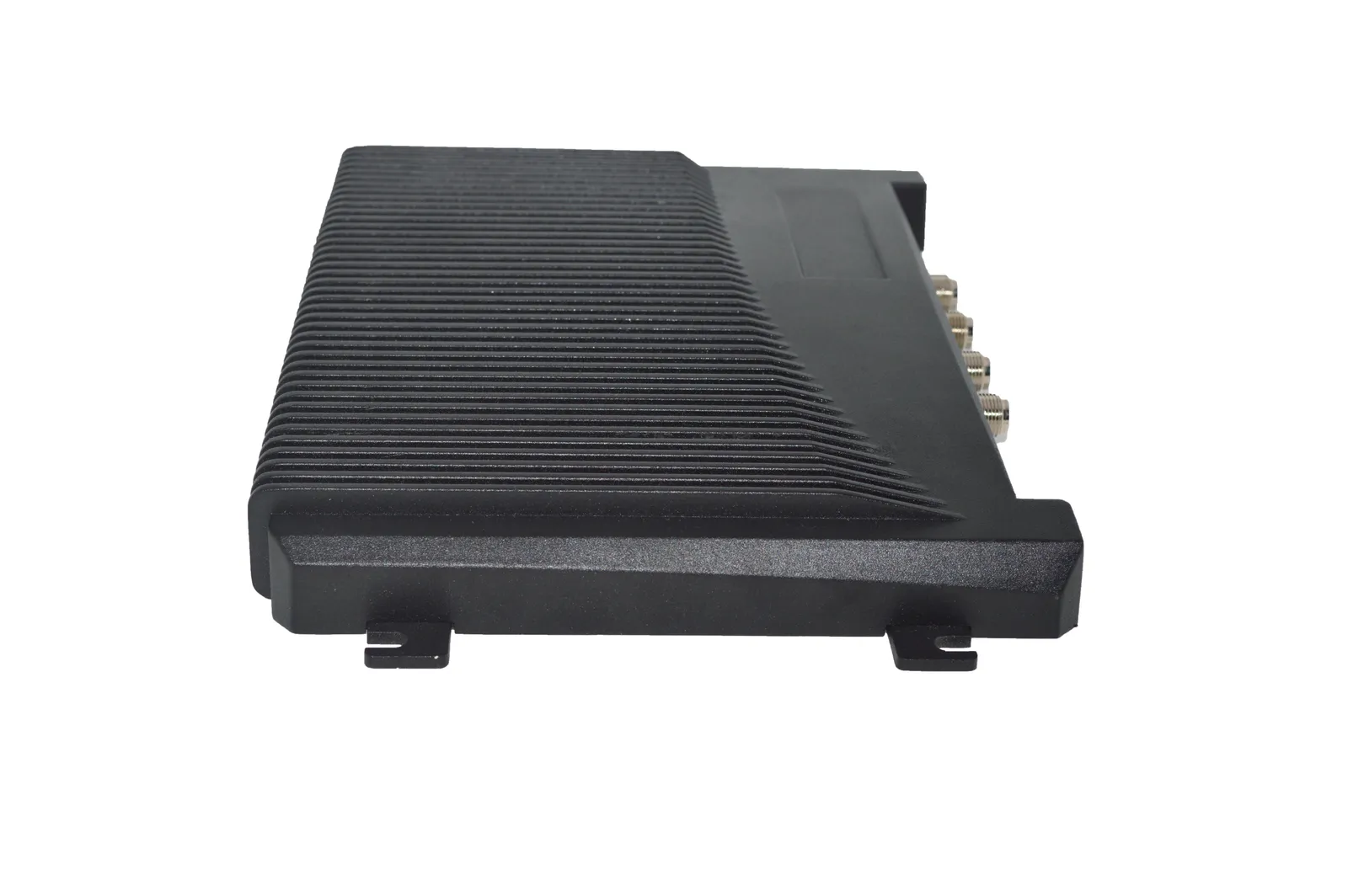

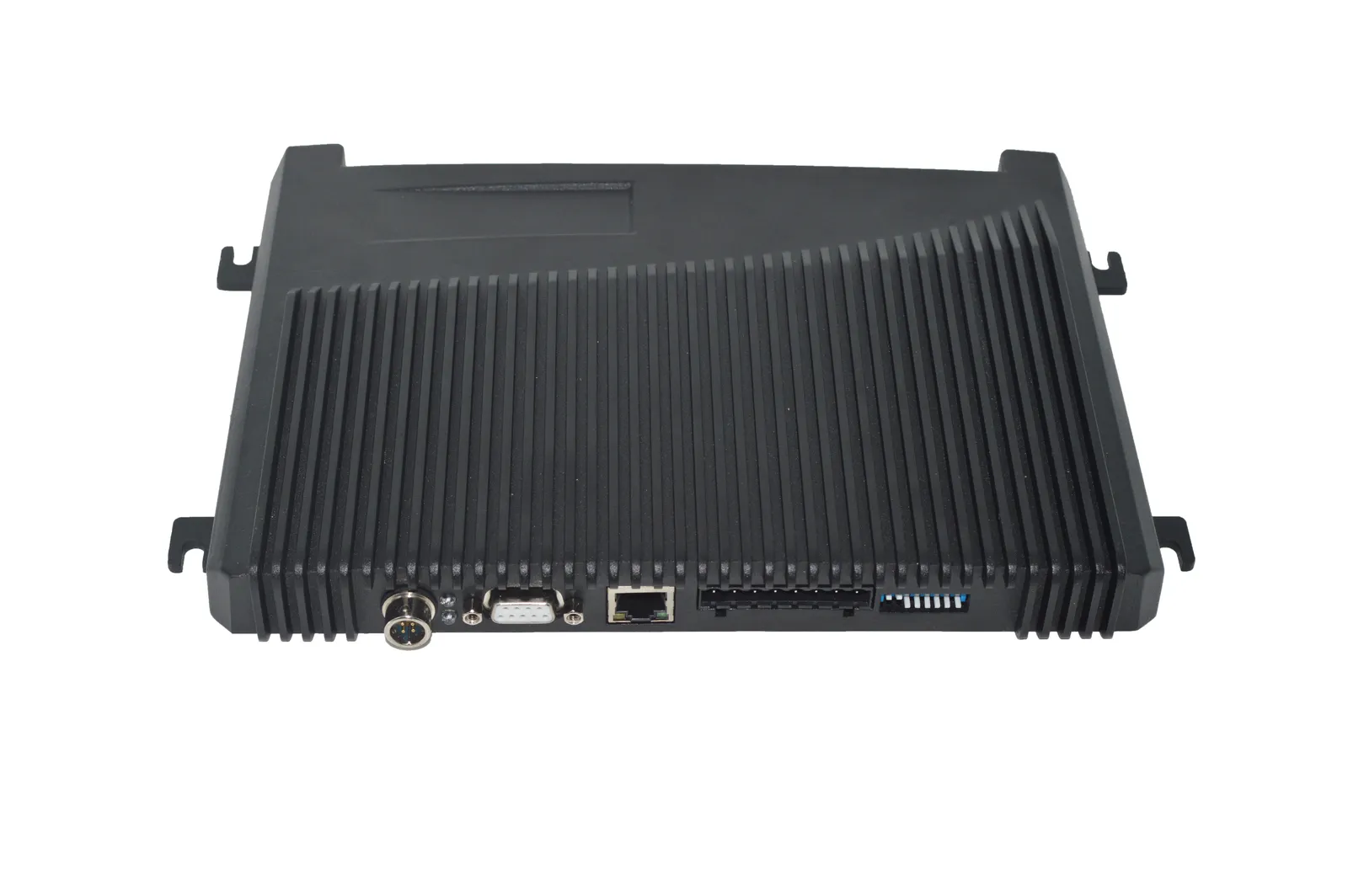

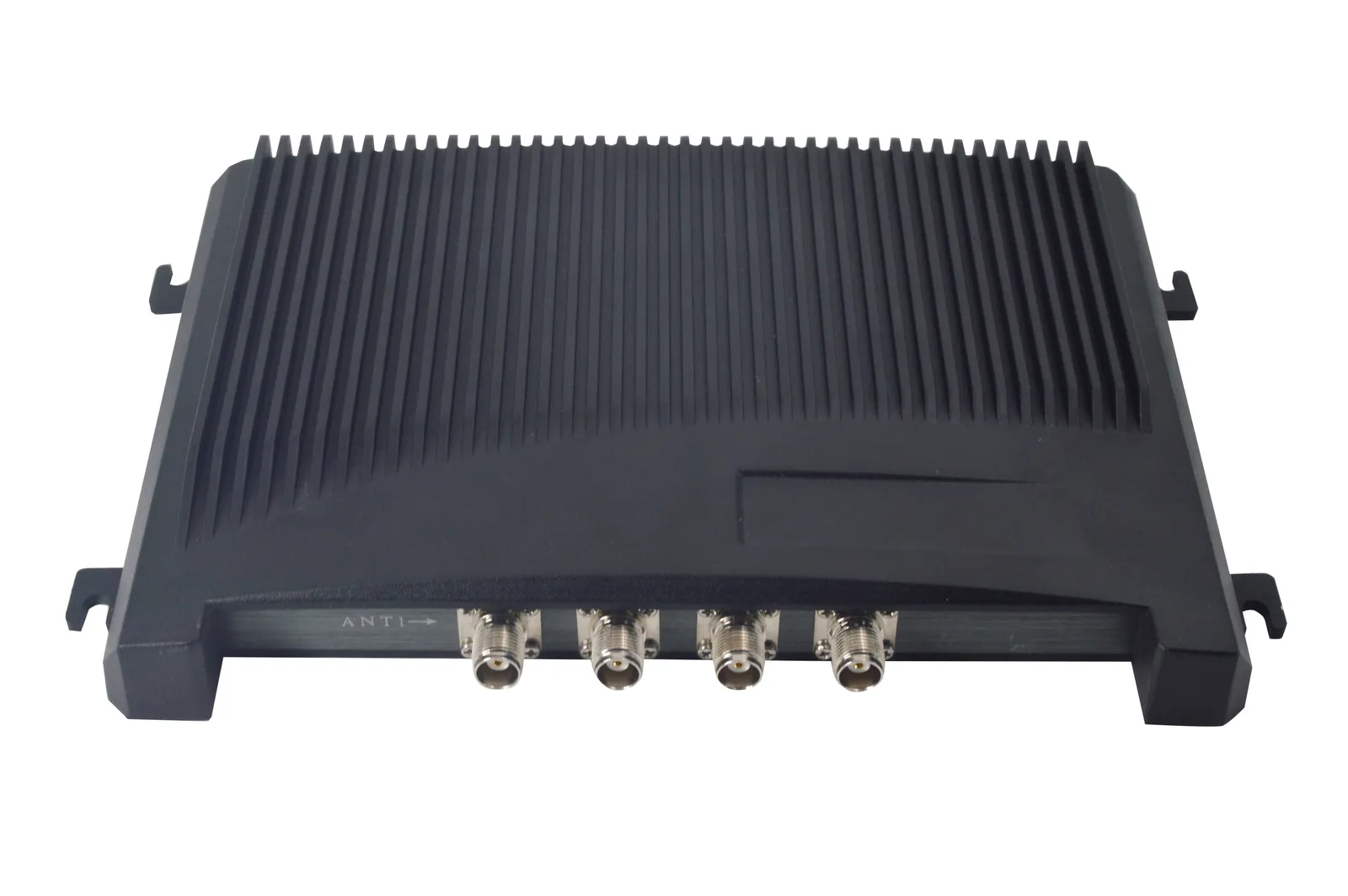

TagTrack S8600 - Industrial RFID reader
Professional UHF RFID reader with 4 antenna ports. Designed for automatic identification of large textile volumes.
Specifications
| RFID chip | Impinj Indy R2000 |
|---|---|
| RFID standard | EPC Class 1 Gen 2, ISO/IEC 18000-6C, ISO/IEC 18000-6B |
| Operating frequency | 865–868 MHz (ETSI) / 902–928 MHz (FCC) |
| Output power | 0–33 dBm |
| Read rate | > 700 tags/s |
| Antenna ports | 4 antenna ports |
| Communication interface | TCP/IP, RS-232 |
| GPIO | 2 inputs / 2 outputs |
| Operating temperature | -20°C to +85°C |
| Dimensions and weight | 240 × 180 × 28 mm, 1.2 kg |
| Housing | die-cast aluminium |
About
TagTrack S8600 is a professional 4-port UHF RFID reader designed for identifying and monitoring large numbers of RFID tags in real time. The device features the Impinj Indy R2000 chip, delivering high read performance, fast switching between four antennas and support for the EPC Global Class 1 Gen 2, ISO/IEC 18000-6C and ISO/IEC 18000-6B standards.
With up to four antennas connected simultaneously, the reader performs excellently in laundry, warehouse, logistics and industrial systems requiring automatic identification of large numbers of objects. A read rate exceeding 700 tags per second handles even the most demanding RFID applications.
